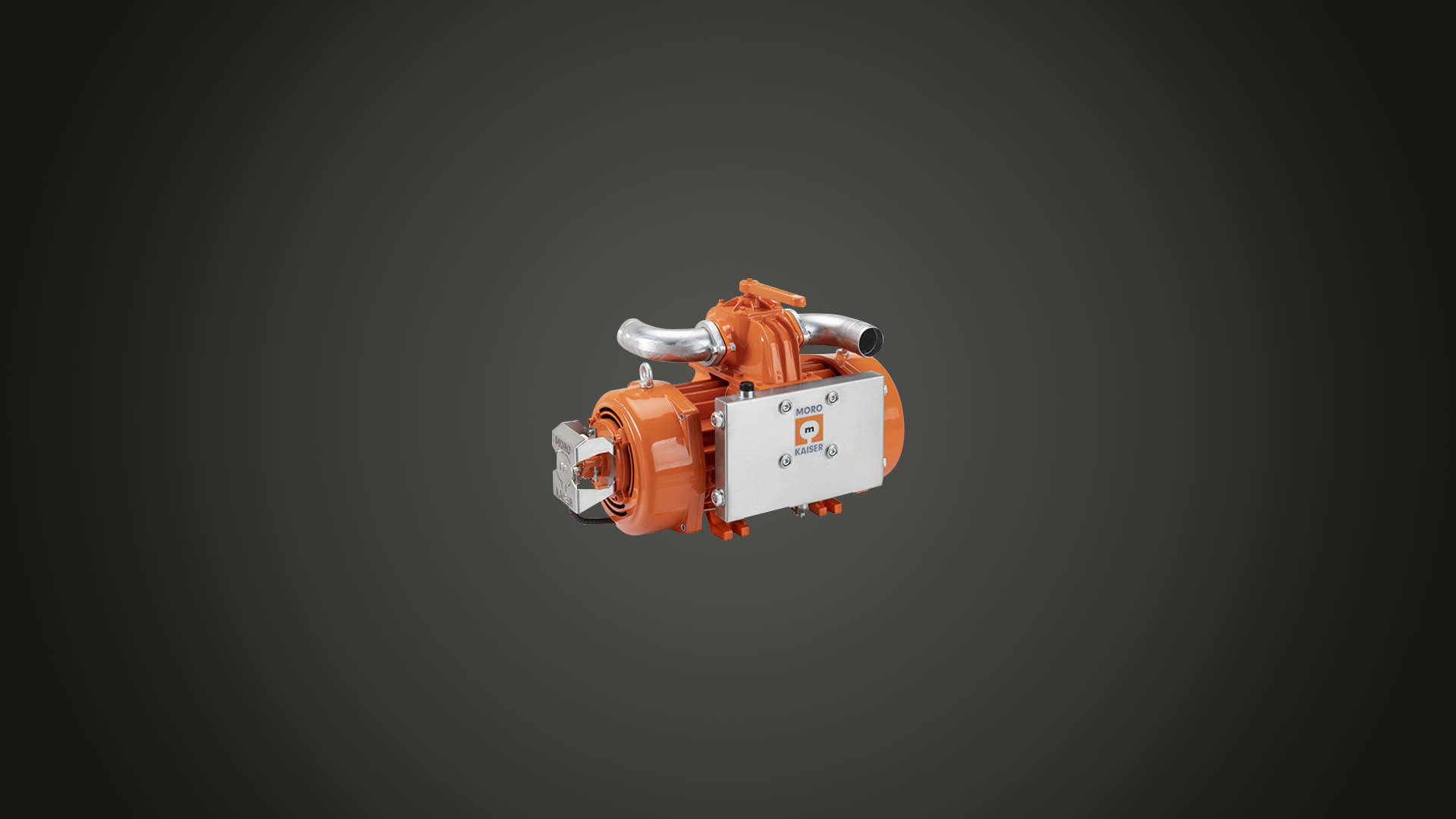

TURBO VANE PUMP

The new TURBO series forced convection air cooling with 2 fans vacuum pumps represent the most elevated standard in the technology of the vacuum suction and they are studied on purpose for an employment in the industrial sector. The applied technology is the one of the radial rotary vanes pump. The TURBO range is currently constituted by 4 pumps models, with different air courses, for which there are several accessories available in accordance of the required capacity. The pump's body, realized in high-resistant cast iron, has been projected to guarantee the maximum lasting reliability and to favor the heat exchange. The air inlet and outlet ports have been studied to reduce both noise and heat produced. The increase of heat exchange has been granted by the introduction of 2 cooling fans which imporve the time of the pump use. The correct operation of the vacuum pump is insured by the forced lubrication with piston pump. The oil tank is incorporated. The vanes are of a high-heat-resistant composite material. A special inspection hole in the flanges allows the visual check of their wear. The Viton seals grants a better resistance of the pump to high temperatures. The non-return valve and the 4-ways valve are integrated in the pump. The inlet and outlet elbows are flanged and can be directed in accordance of the requirements of the final use.

• Outlet curves predisposed for the mounting of pressure relief valve, vacuum relief valve and manometer.
• Hydraulic or pneumatic actuator change over type for the 4-way valve.

PM50T

• 4'500 lt/min
• 270 m3/h
• 159 cfm

PM70T

• 7'000 lt/min
• 420 m3/h
• 247 cfm

PM90T

• 12'183 lt/min
• 731 m3/h
• 430 cfm

PM100T

• 13'000 lt/min
• 780 m3/h
• 460 cfm

PM150T

• 15’450 lt/min
• 927 m3/h
• 546 cfm
