PKL
Modal: PKL 4.0/30W
UDOR
EXCLUSIVE DISTRIBUTOR FOR INDIA

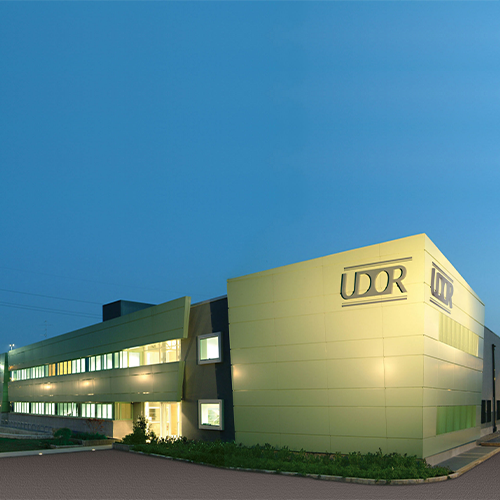

In 1966 Gianni Zanasi, the founder of the company, starts to manufacture Diaphragm Pumps for agricultural use, today, after 55 years, the Zanasi family still runs UDOR and takes the wide range of Diaphragm Pumps and Plunger Pumps to extremely high level of performance and quality, reaching all the time new applications and markets.
Udor Has A Very Wide And Complete Range Of Pumps, Whose Quality Is Well Known In The High Pressure Pumps Market. This Quality We Were Able To Reach Is Given By The Continuous Control Processes We Carry Out Up To The Final Product.
| REN MODEL NO | PUMP MODEL | FLOW RATE (LPM) | PRESSURE (BAR) | RPM | HP |
|---|---|---|---|---|---|
| Re034 | PKL 4.0/30W | 15 | 200 | 3400 | 7.7 |
| BL 5.0/30W | 19 | 200 | 3400 | 9.7 | |
| WS 102 | BC 21/15 | 21 | 150 | 1450 | 8.1 |

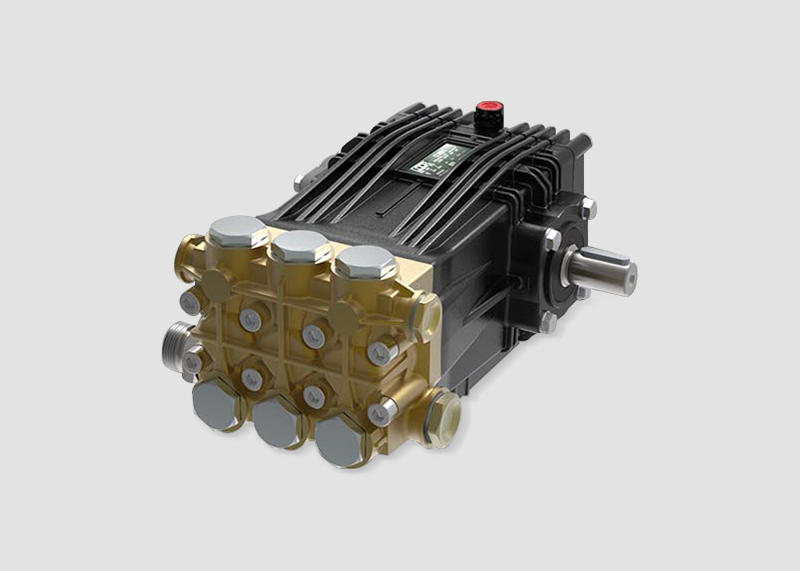

| RE015 | CC 50/150 | 50 | 150 | 1450 | 19.2 |
| RE028 | CC 70/150 | 70 | 150 | 1450 | 27 |
| RE070 | NK-B 70/150 | 70 | 150 | 1000 | 27 |
| RT036 | NK-C 100/150 | 100 | 150 | 1450 | 38.4 |
| RF030 | NK-C 130/130 | 130 | 130 | 1450 | 42.1 |
| RF060 | VXT-B 130/160 | 130 | 160 | 1000 | 51.3 |
| RF036 | VXT-B 160/130 | 155 | 130 | 1000 | 52.3 |
| RF050 | VXT-B 150/150 | 155 | 150 | 1000 | 60 |
| RS040 | VXX-F 240/140 | 240 | 140 | 1000 | 86 |
| RW045 | HXR 270/160 | 270 | 160 | 1500/1800 | 107 |
| GAMMA | GAMMA IL 160 TS 1C | 169.7 | 80 | 600 | 33.4 |
| GAMMA IL 200 TS 1C | 214.4 | 80 | 600 | 42.2 |
RECYCLING WATER / DRY RUNING PUMP
| RPM | CODE | MODEL | NOMINAL FLOW |
FLOW | PRESSURE | POWER | INLET | OUTLETPORT | WEIGHT | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| l/min | GPM | l/min | GPM | bar | PSI | HP | kW | kg | |||||
| 1500 | 830031 | HXR1-C 270/160 R MI - GW | 267,2 | 70,6 | 260 | 68,7 | 160 | 2320 | 106,8 | 79,6 | G2” 1/2 | G1” 1/4 | 181.0 |
| 1800 | 830032 | HXR1-D 270/160 L - GW | 267,2 | 70,6 | 260 | 68,7 | 160 | 2320 | 106,8 | 79,6 | |||

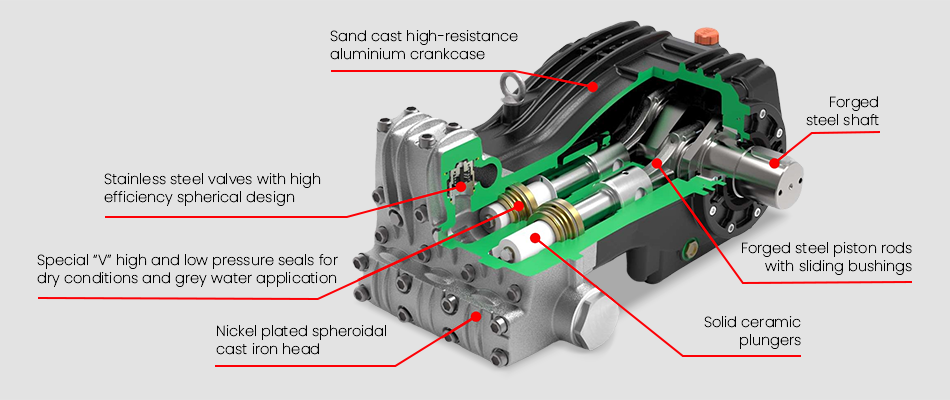

MAIN FEATURES
- WATER-SEALS: seal-package made of a special compound studied by UDOR to increase the performance at dry conditions and grey water application.
- PLUNGERS:Pistons designed to resist thermal shocks and particles suspended in the pumped liquid.
- CORROSION and CHEMICAL PROTECTION:all pump components are designed to resist the corrosion of the harshest working environments; the pump head is coated with a special treatment that makes it perform most efficiently.
- Pump PTO configuring: Direct coupling version; gearbox version; hydraulic motor version

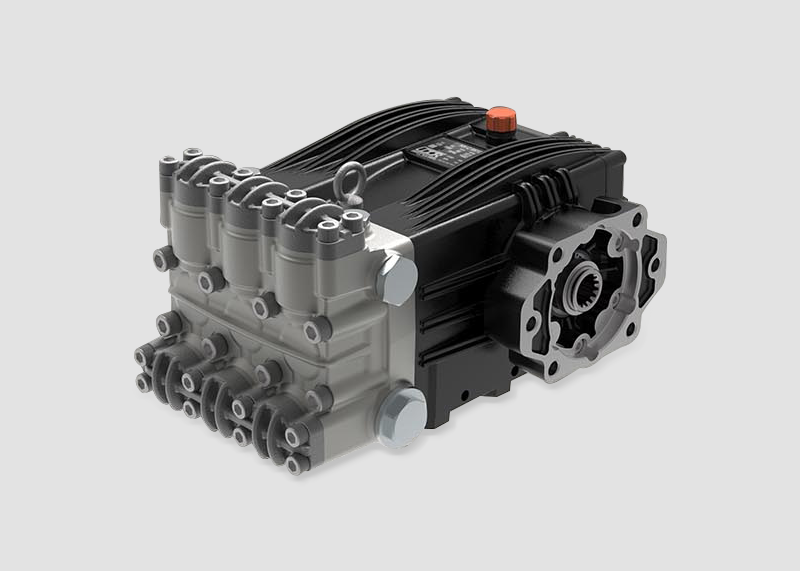

- New VXT, VXT & HXR version for challenging and heavy duty application
- Thanks to special blend packings, VXT can tolerate:
- CHARGED WATER with suspended solids up to 200 m, up to 20% concentration
- HOT WATER upto 85 C
New VXT & HXR version for challenging and heavy duty application
| REN MODEL NO | PUMP MODEL | FLOW RATE (LPM) | PRESSURE (BAR) | RPM | HP |
|---|---|---|---|---|---|

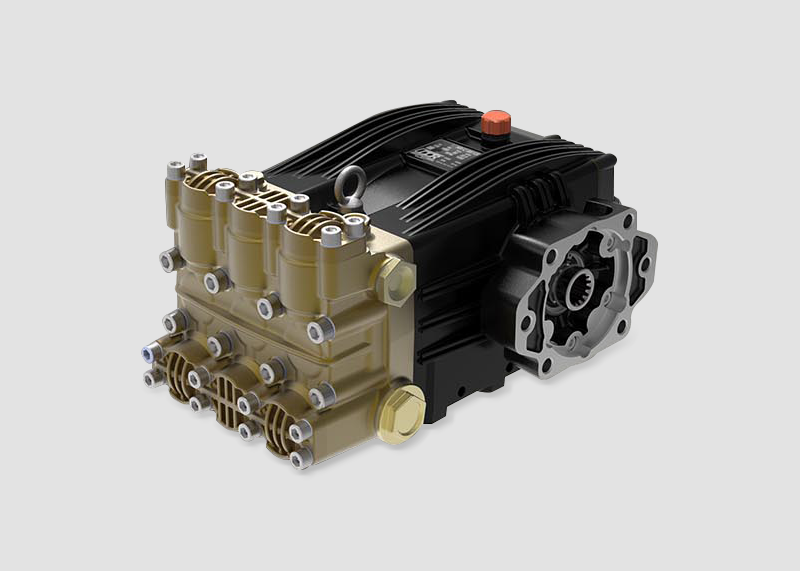

| RF060 | VXT-B 130/160 | 130 | 160 | 1000 | 51.3 |
| RF036 | VXT-B 160/130 | 155 | 130 | 1000 | 52.3 |
| RF050 | VXT-B 150/150 | 155 | 150 | 1000 | 60 |
| RW045 | HXR 270/160 | 270 | 160 | 1500/1800 | 107 |
HYDRAULIC SERIES (MI)
TRIPLEX PLUNGER PUMP FOR SEWER JETTING
