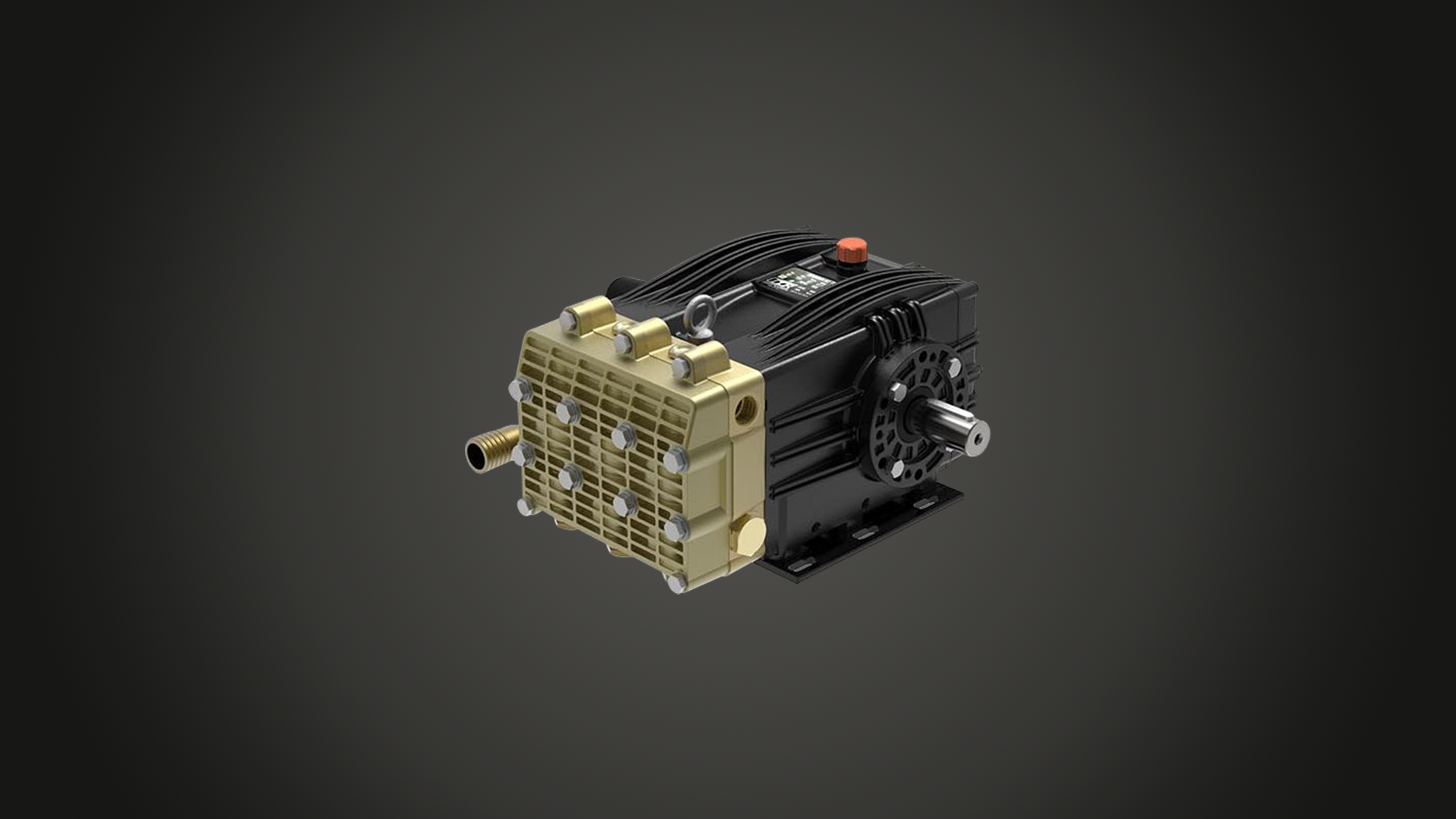

Reciprocating plunger pump 3 solid ceramic plungers, forged brass head, aluminum die cast crankcase with cataphoresis coating, double sealing system, hardened steel crankshaft, oversize roller/ball bearings.
The pump GAMMA has a double splined/cylindrical shaft, it produces a flow from 84 to 107 l/min, it operates at max 100 bar.
Series
Serie GAMMA-IL 83-103
Flow rate
from 84 to 107 l/min
from 22.2 to 28.3 GPM
from 22.2 to 28.3 GPM
Pressure MAX
100 bar • 1450 PSI
RPM
600
Power MAX
27.4 HP • 20.4 kW
Weight
53.4 Kg
