HELIX
HELIX

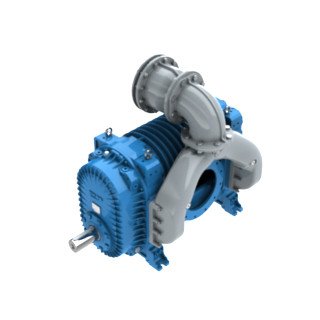

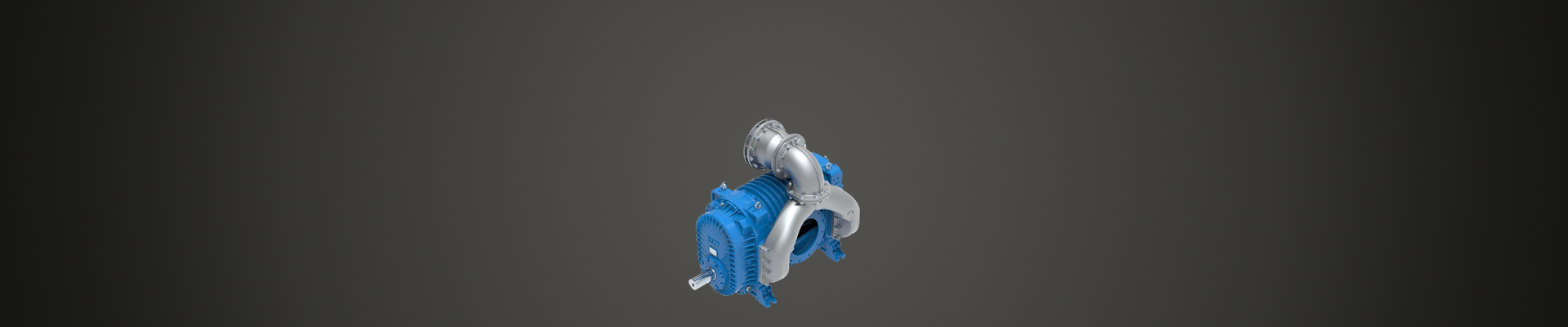

Blowers and helical lobe vacuum pumps. Air injection cooled.
Low noise level.
Operating without oil and without wear.
Long life high temperature seals
Direct transmision or with gearbox*. Hydraulic motor available upon request.
* HELIX 140-180-220 only.
TECHNICAL SPECIFICATION
| Code | Flow | Rotation speed | Vacuum | Continuous vacuum | Pressure max abs | Power Vacuum Max. | Weight | HYD | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| m3/h | l/min | cfm | rpm | rpm | % | Hg | % | Hg | bar | psi | kW | hp | kg | lbs | ||
| 140 | 850 | 14167 | 500 | D4500 | M1500 | 91 | 27,3 | 91 | 27,3 | 2 | 29 | 24 | 32 | 125 | 275,5 | • |
| 180 | 1090 | 18167 | 642 | D4500 | M1500 | 91 | 27,3 | 91 | 27,3 | 2 | 29 | 32 | 43,5 | 137 | 302 | • |
| 220 | 1280 | 21350 | 755 | D4200 | M1400 | 93 | 27,8 | 93 | 27,8 | 2 | 29 | 35 | 47 | 144,5 | 318,5 | • |
| 300 | 1850 | 30800 | 1089 | D3400 | - | 93 | 27,8 | 93 | 27,8 | 2 | 29 | 56 | 75 | 192 | 424 | • |
| 450 | 2600 | 43300 | 1530 | D3400 | - | 93 | 27,8 | 93 | 27,8 | 2 | 29 | 74 | 100 | 240 | 529 | • |
| 550 | 3060 | 51000 | 1800 | D3300 | - | 93 | 27,8 | 93 | 27,8 | 2 | 29 | 94 | 127 | 323 | 712 | • |
| 750 | 4150 | 69200 | 2445 | D2500 | - | 93 | 27,8 | 93 | 27,8 | 2 | 29 | 112 | 151 | 647 | 1430 | • |
| 1200 | 6400 | 106700 | 3767 | D2500 | - | 93 | 27,8 | 93 | 27,8 | 2 | 29 | 175 | 235 | 765 | 1690 | • |
| 1500 | 8495 | 141600 | 5000 | D2600 | - | 93 | 27,8 | 93 | 27,8 | 2 | 29 | 206 | 276 | 900 | 1984 | • |
| 2000 | 10860 | 181000 | 6392 | D2100 | - | 93 | 27,8 | 93 | 27,8 | 2 | 29 | 295 | 395 | 1200 | 2650 | |
