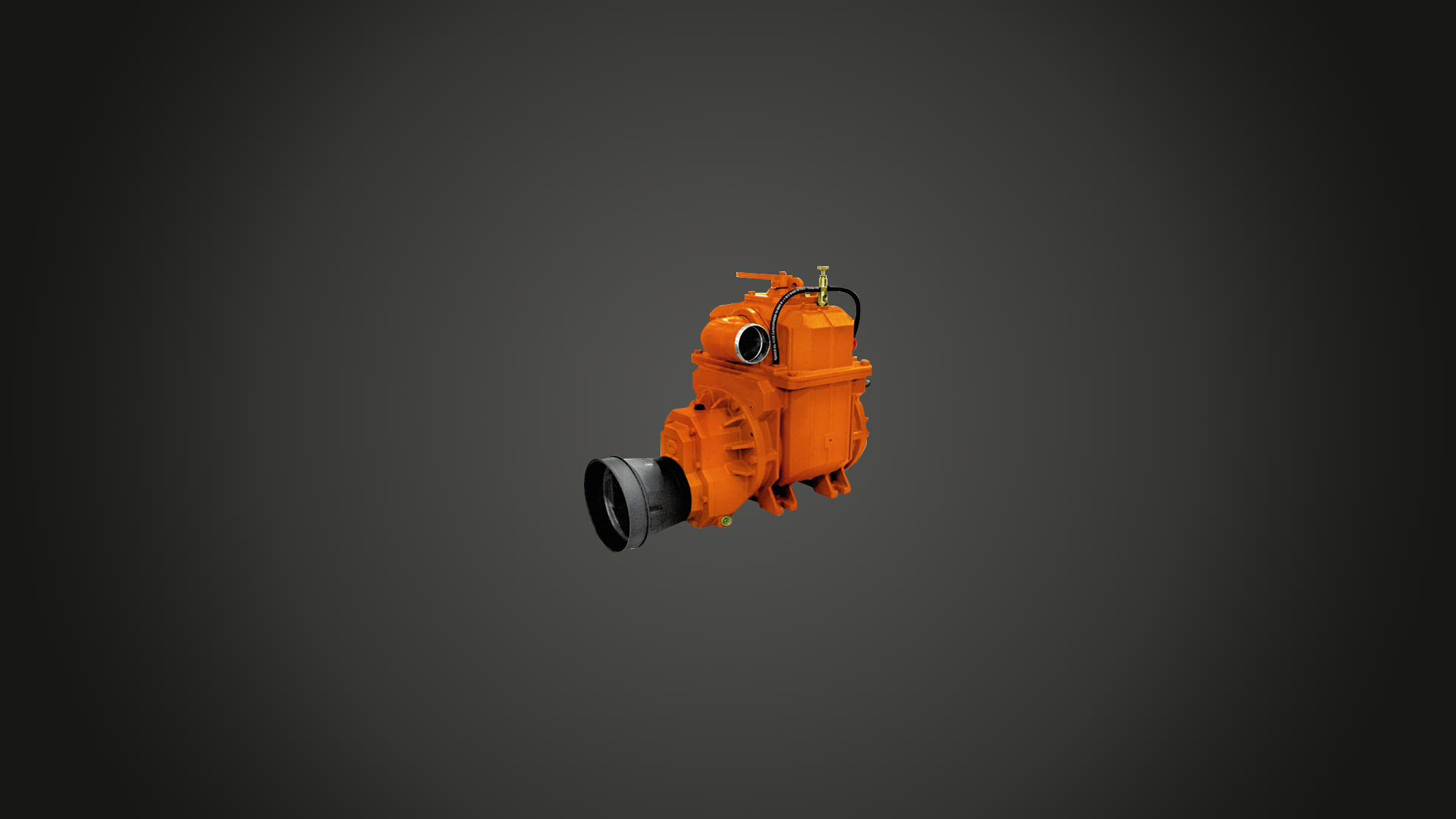

TURBO VANE PUMP

The New AIR series radiant cooled vacuum pumps represent the most elevated standard in the technology of the vacuum suction and they are studied on a purpose for an employment in the industrial or agricultural sector. The applied technology is the one of the radial rotary vanes pump. The AIR flow range is currently constituted by various base pumps models, with different air courses, for which they are available various versions in accordance of the capacity required. The body pumps, realized in cast iron to tall resistance, had been projected to guarantee the maximum reliability and to favor the heat exchange. The air entry and exit lights have been studied in the optics of the noise and heat produced reduction. The correct operation of the pump is insured by the forced lubrication with oil pump. The oil tank is incorporated. The vanes are realized for standard applications. A special inspection hole practiced in the body pump allows to make its usury with a visually check. The no return valve and the 4 ways valve are integrated in the pump. The entry and exit elbows are flange coupling and can be directed in accordance of the requirements of the final use. The New AIR series models are predisposed for the upgrade with in-jet system to improve the heat exchange of the pump in the heavy duty use. Thanks to the industrialization of the product, the New AIR range vacuum pumps share the almost totality of the components.

• Automatic lubrication with pistons pump.
• Kit Tall Resistance for high temperature, foresees resistant vanes and special Viton oil seals.
• Exit curves predisposed for receiving the pressure relief valve, vacuum relief valve and gauge.
• Hydraulic or pneumatic actuator change over type for the 4 way valve.

Every pump model is available in 4 different versions, countersigned by the following marks:

AM transmission with gearbox for 540 rpm
AP transmission with pulley for 1.000/1.100 rpm
AH hydraulic transmission
AD transmission with cardan shaft for 1.000/1.100 rpm

PM60 AIR

• 7'200 lt/min
• 432 m3/h
• 254 cfm

PM70 AIR

• 9'400 lt/min
• 564 m3/h
• 332 cfm

PM80 AIR

• 12'000 lt/min
• 720 m3/h
• 424 cfm

PM110 AIR

• 16'400 lt/min
• 984 m3/h
• 579 cfm
