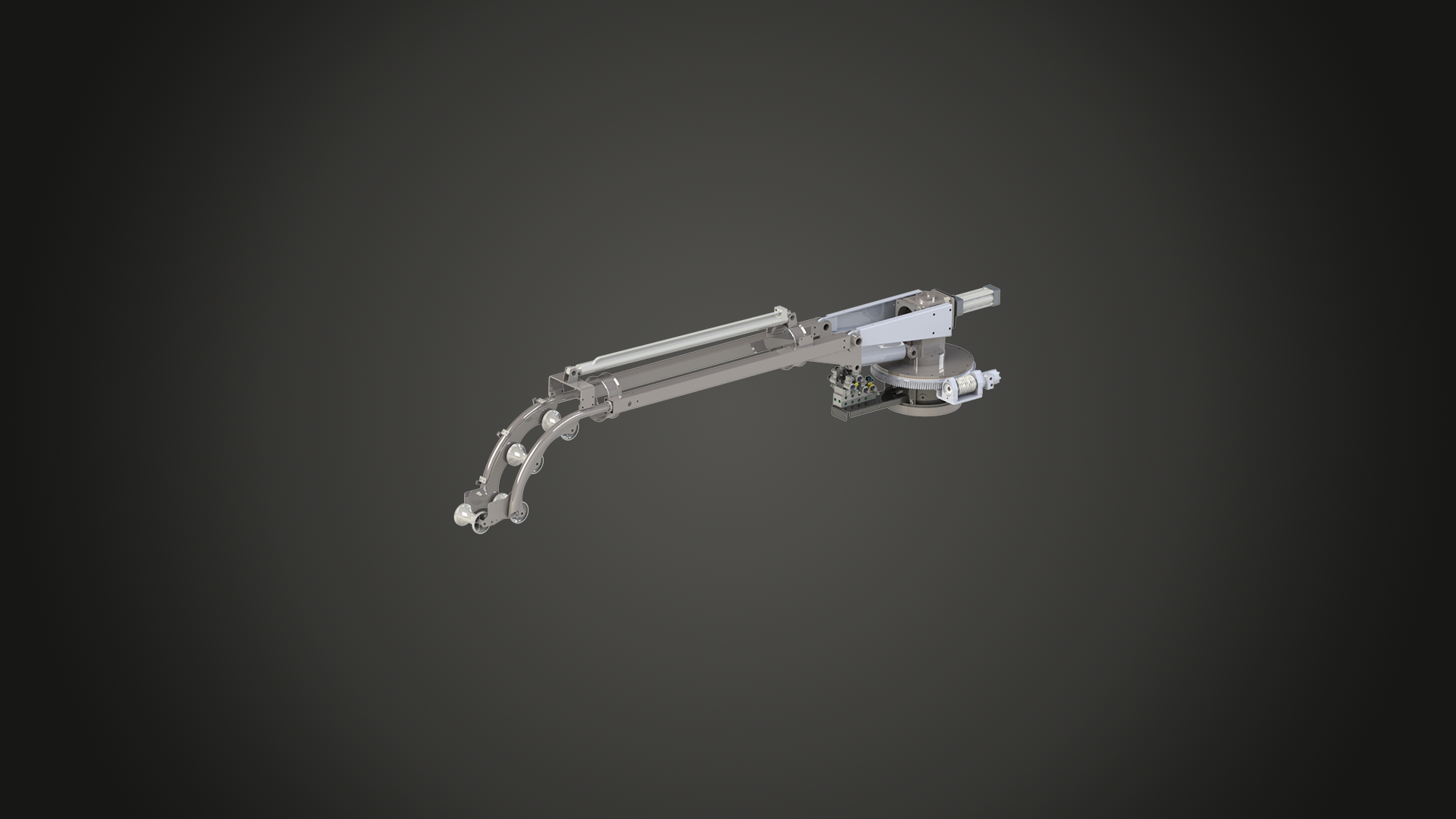

360° HYDRAULIC CONTINUOUS ROTATION BOOM

The suction boom starts the vacuum line, it is the first component which comes into contact with the sludge material and it is the more complex part of the system and of the air flow covered during the entire path from the suction mouth to the tank.

• Top mounted suction boom.
• Hydraulic rotation with hydraulic motor and worm. Centre-plate.
• Continuous rotation angle: 360°. Adjustable speed.
• Elevation: controlled speed, effort limiter on the down stroke.
• Gate valve: movement with pneumatic cylinder.
• Solenoid valve group for the movements control. 12 V or 24 V
• Structure made of construction steel.
• Guide rollers and support for the suction line.
• Welded cockpit made of carbon steel/stainless steel.

Parameter	Value
Working pressure	+1,5 bar rel
Hydraulic oil flowrate	15÷20 l/min
Hydraulic system pressure	120 bar
Hose diameter	5” - 6” / 120 mm - 150 mm
Weight	410 / 450 kg
