Product sheet

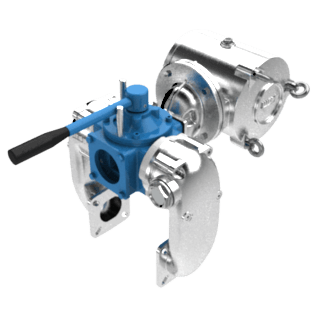

SUCTION UNIT

The SUCTION GROUP is developed to make the installation easier on stationary or mobile vacuum/pressure plants, conveying air. The suction unit is designed to be installed in correspondence of suction/discharge ports and can be installed on the HELIX, PVT and CT vacuum pumps with horizontal ports.

TECHNICAL SPECIFICATION

Suction Units
Code Model Positive displacement lobe blowers / compressors
18521033E0 Suction group with Pneumatic 4way valve and suction filter CT30-50
1852113500 Suction group with Manual 4way valve and suction filter CT30-50
18521168E0 Suction group with Pneumatic 4way valve and suction filter CT80-CTH80-HELIX140
18521169E0 Suction group with Manual 4way valve and suction filter CT80-CTH80-HELIX140
18521170E0 Suction group with Pneumatic 4way valve and suction filter CT105-CTH105-HELIX180
18521171E0 Suction group with Manual 4way valve and suction filter CT105-CTH105-HELIX180
18521075E0 Suction group with Pneumatic 4way valve and suction filter CT130-CTH130-PVT200-HELIX220
18521076E0 Suction group with Manual 4way valve and suction filter CT130-CTH130-PVT200-HELIX220
18521069E0 Suction group with Pneumatic 4way valve and 1 Flame Arresters DRF/F140 CT130-CTH130-PVT200-HELIX220
18521073E0 Suction group with Pneumatic 4way valve and 2 Flame Arresters DRF/F140 CT130-CTH130-PVT200-HELIX220
18521070E0 Suction group with Manual 4way valve and 1 Flame Arresters DRF/F 140 CT130-CTH130-PVT200-HELIX220
18521165E0 Suction group with Pneumatic 4way valve and suction filter CT180-CTH180-PVT280-HELIX300
18521166E0 Suction group with Manual 4way valve and suction filter CT180-CTH180-PVT280-HELIX300
18521162E0 Suction group with Pneumatic 4way valve and 1 Flame Arresters DRF/F220 CT180-CTH180-PVT280-HELIX300
18521163E0 Suction group with Pneumatic 4way valve and 2 Flame Arresters DRF/F220 CT180-CTH180-PVT280-HELIX300
18521164E0 Suction group with Manual 4way valve and 1 Flame Arresters DRF/F 220 CT180-CTH180-PVT280-HELIX300
18521093E0 Suction group with Pneumatic 4way valve and suction filter CT240-CTH240-PVT400-HELIX450
18521155E0 Suction group with Manual 4way valve and suction filter CT240-CTH240-PVT400-HELIX450
18521158E0 Suction group with Pneumatic 4way valve and 1 Flame Arresters DRF/F220 CT240-CTH240-PVT400-HELIX450
18521152E0 Suction group with Pneumatic 4way valve and 2 Flame Arresters DRF/F220 CT240-CTH240-PVT400-HELIX450
18521159E0 Suction group with Manual 4way valve and 1 Flame Arresters DRF/F 220 CT240-CTH240-PVT400-HELIX450
18521018E0 Suction group with Pneumatic 4way valve CT420-CTH420-PVT700-HELIX750
18521021E0 Suction group with Pneumatic 4way valve and suction filter CT420-CTH420-PVT700-HELIX750
18521032E0 Suction group with Manual 4way valve and suction filter CT420-CTH420-PVT700-HELIX750
18521085E0 Suction group with Pneumatic 4way valve CT600-CTH600-PVT1000-HELIX1200
18521154E0 Suction group with Manual 4way valve CT600-CTH600-PVT1000-HELIX1200
18521087E0 Suction group with Pneumatic 4way valve CTH880-HELIX1500
