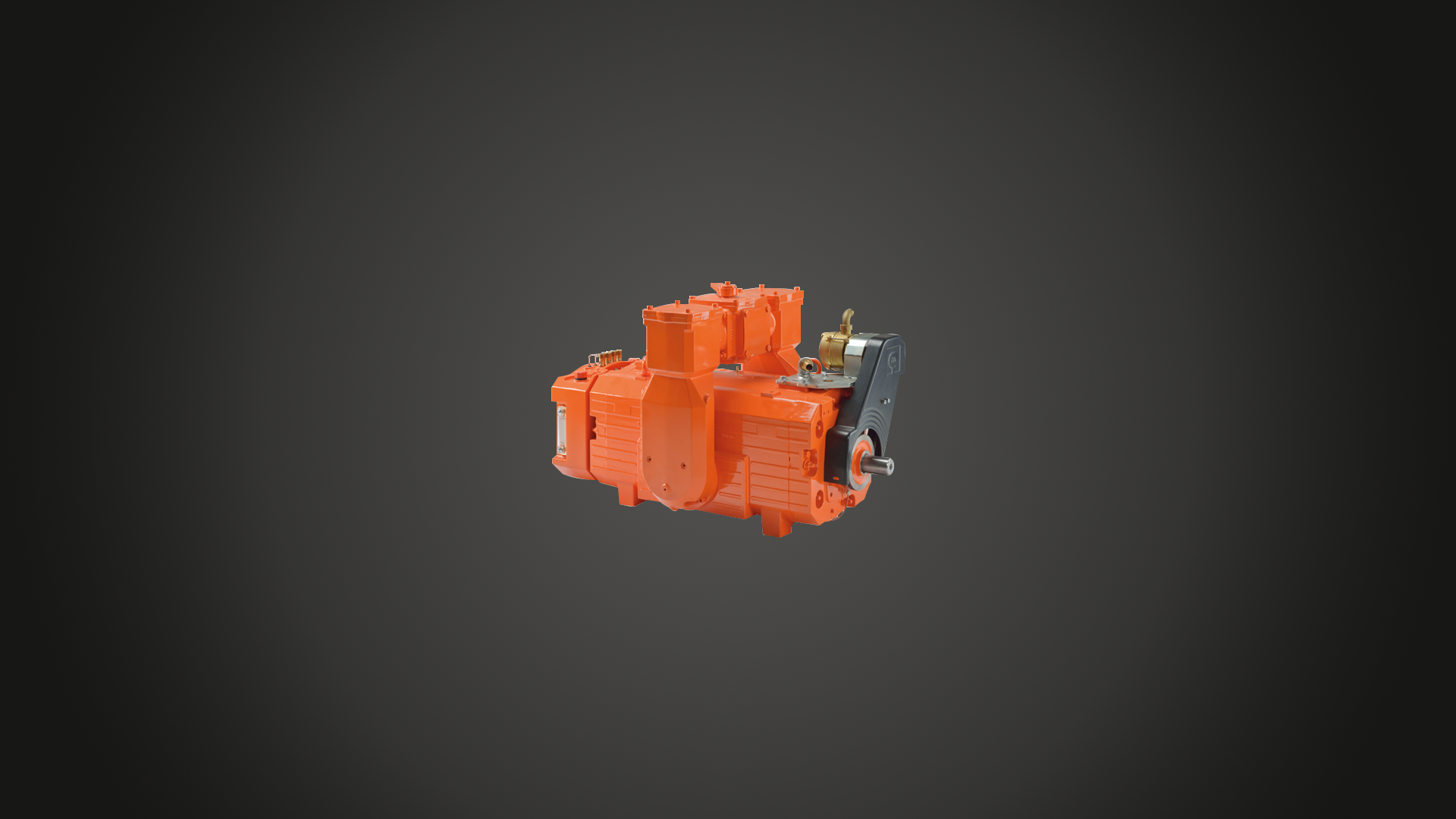

STORM VANE PUMP

The New STORM series liquid cooled vacuum pumps represent the most elevated standard in the technology of the vacuum suction and they are studied on purpose for an employment in industrial sector. The applied technology is the one of the radial rotary vanes pump. The STORM range is currently constituted by various pumps models, with different air courses, for which there are several versions available in accordance of the required capacity. The pump's body, realized in high-resistant cast iron, has been projected to guarantee the maximum lasting reliability and to favor the heat exchange.

The air inlet and outlet ports have been studied to reduce both noise and heat produced. The increase of heat exchange has been granted by the introduction of a liquid-cooling circuit, which improves the time of the pump use. The vacuum pump is standard fitted with a water-recirculating pump. The correct operation of the vacuum pump is insured by the forced lubrication with piston pump. The oil tank is incorporated. The vanes are of a high-heat-resistant composite material. A special inspection hole in the flanges allows the visual check of their wear. The non-return valve and the 4-ways valve are integrated in the pump.

• Hydraulic or pneumatic actuator change over type for the 4-way valve.

Every pump model is available in different versions:

1. For pulley transmission at 1.000 / 1.200 rpm
2. For hydraulic transmission
3. For direct transmission by cardan shaft at 1.000/1.200 rpm

M9

• 15'500 lt/min.
• 930 m³/h
• 547 cfm

PM200

• 19'200 lt/min.
• 1'152 m³/h
• 678 cfm

PM2000

• 23'600 lt/min.
• 1'416 m³/h
• 833 cfm

PM3000

• 28'333 lt/min.
• 1'700 m³/h
• 1001 cfm
