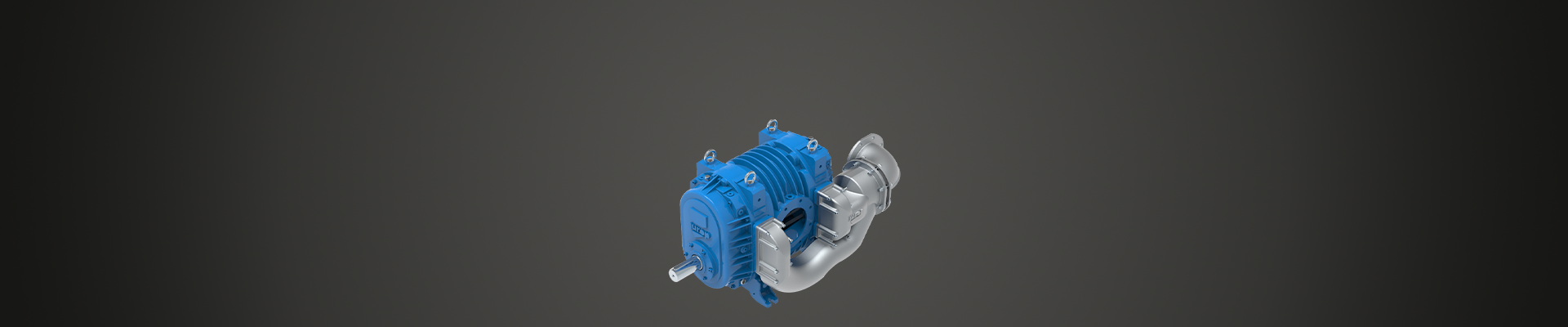

PVT MODEL
PVT MODEL

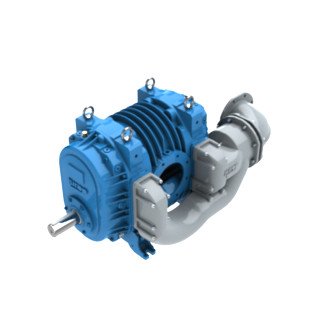

PVT vacuum pumps are 3 lobe blowers specifically designed for vacuum plants that must convey gas free from polluting substances, oil or water: this is made possible due to the lack of sliding parts, and therefore oil lubrication within the compression chambers. Moreover, PVT blowers do not need any auxiliary cooling system, as they are provided with a built in air injection cooling system. The specific and accurate lobes profiles grant high volumetric efficiency and high flow rates combined with minimized dimensions and vacuum rates that can reach 93%.
TECHNICAL SPECIFICATION
| Code | Flow | Rotation speed | Vacuum | Continuous vacuum | Pressure max abs | Max Power vacuum | Weight | HYD | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| m3/h | l/min | cfm | rpm | rpm | % | Hg | % | Hg | bar | psi | kW | hp | kg | lbs | ||
| 200 | 1280 | 21350 | 755 | D4200 | M1400 | 93 | 28 | 93 | 28 | 2 | 29 | 35 | 47 | 160 | 352 | • |
| 280 | 1850 | 30800 | 1089 | D3300 | - | 93 | 28 | 93 | 28 | 2 | 29 | 56 | 75 | 192 | 424 | • |
| 400 | 2600 | 43300 | 1530 | D3300 | - | 93 | 28 | 93 | 28 | 2 | 29 | 74 | 100 | 240 | 529 | • |
| 700 | 4150 | 69150 | 2445 | D2500 | - | 93 | 28 | 93 | 28 | 2 | 29 | 112 | 151 | 640 | 1411 | • |
| 1000 | 6400 | 106700 | 3767 | D2500 | - | 93 | 28 | 93 | 28 | 2 | 29 | 175 | 235 | 780 | 1720 | • |
