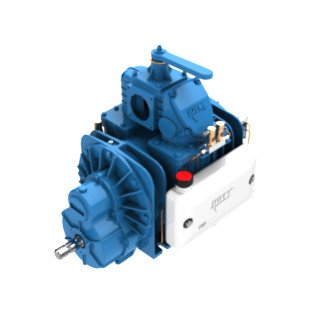

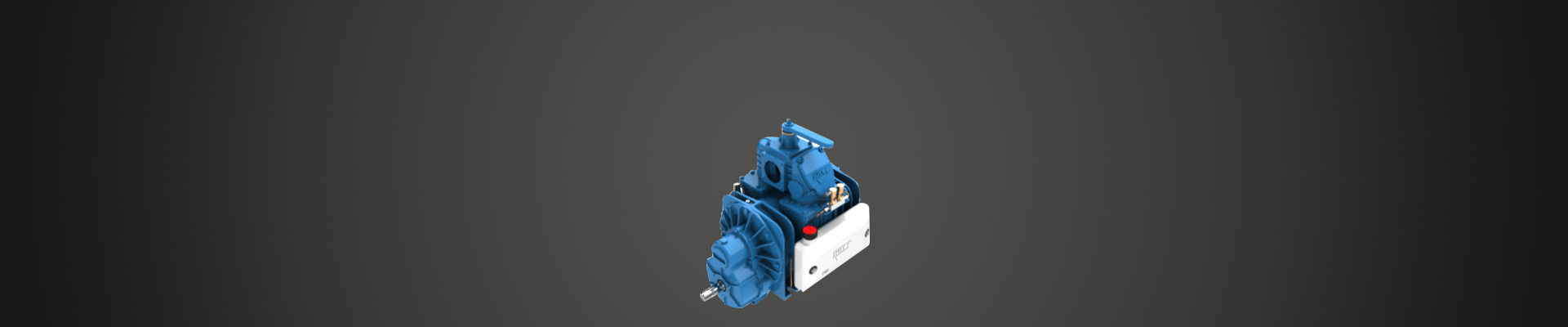

PNR / PNE MODEL

Sliding vanes vacuum pump injection cooled (PNR) or natural air-cooling (PNE).

The PNR version is meant for heavy duty; the PNE version for normal use.

Forced oil lubrication of both bearings and sealings. Copper oil piping. Rear oil tank (PNE/PNR 104-124). Side oil tank (PNR142).

Manifold with non-return valve on the pump inlet.

Transmission: Direct with smooth or splined shaft or gearbox transmission.

Available on request: Transmission with hydraulic motor.

Code	Flow			Rotation speed			Vacuum		Continuous vacuum		Pressure max abs		Max Power vacuum		Weight		HYD	Side oil tank
Code	m3/h	l/min	cfm	rpm	rpm	rpm	%	Hg	%	Hg	bar	psi	kW	hp	kg	lbs	HYD	Side oil tank
73 (PNR)	432	7200	254	D1350	M540	-	93	28	70	21	2	29	11	15	110	242	•
73 (PNE)	432	7200	254	D1350	M540	-	93	28	60	18	2	29	11	15	110	242	•
83 (PNR)	492	8200	290	D1350	M540	-	93	28	70	21	2	29	12,5	17	119	262	•
83 (PNE)	492	8200	290	D1350	M540	-	93	28	60	18	2	29	12,5	17	119	262	•
104 (PNR)	624	10400	370	D1300	M540	M1000	95	28,5	70	21	2	29	14	19	150	330	•
104 (PNE)	624	10400	370	D1300	M540	M1000	95	28,5	60	18	2	29	14	19	150	330	•
124 (PNR)	744	12400	440	D1300	M540	M1000	95	28,5	70	21	2	29	16	21,7	169	372	•
124 (PNE)	774	12900	456	D1300	M540	M1000	95	28,5	60	18	2	29	16	21,7	169	372	•
142 (PNR)	852	14200	500	D1200	M540	M1000	95	28,5	70	21	2,5	36	20,5	28	210	463	•	•
260 (R)	620	10300	365	D1300	-	-	95	28,5	60	18	2	29	14,5	19,5	170	375	•	•
155 (R)	910	15200	536	D1300	M540	M1000	93	28	70	21	2	29	19	25,5	220	485	•	•
