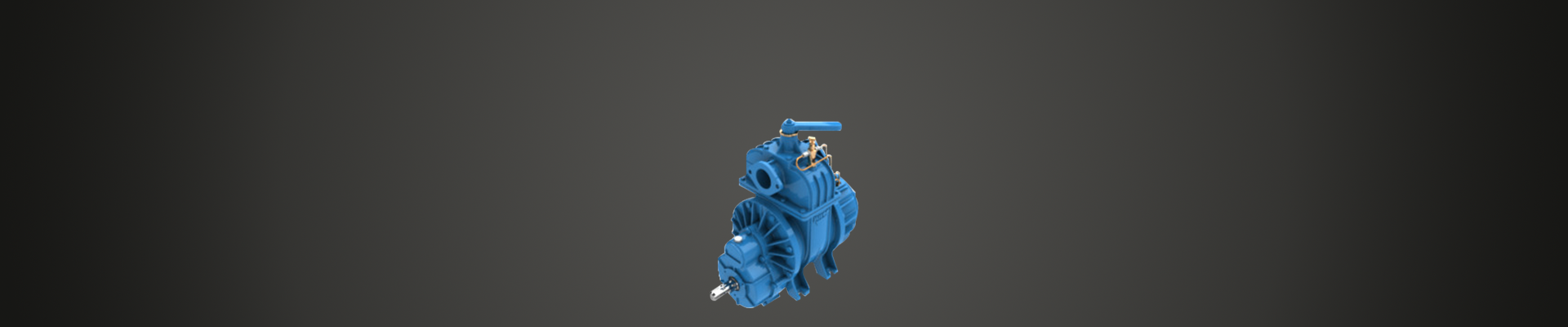

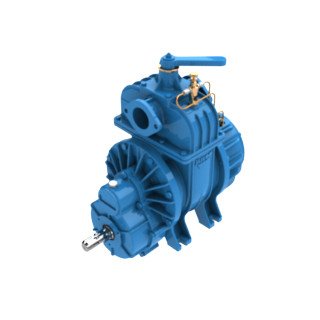

PN MODEL

Sliding vane vacuum pump air cooled.

Forced lubrication.

Copper oil piping.

Aluminium inlet/outlet conveyors.

Built-in vacuum - pressure changeover valve.

Direct drive-system with smooth and splined shaft available. Upon request series PN are supplied with hydraulic motor.

PN130-140-155 are air cooled models. PN155R is an air injection cooled model.

Automatic lubrication pump with side mounted oil tank (with a 4 litres tank capacity).

Code	Flow			Rotation speed			Vacuum		Continuous vacuum		Pressure max abs		Max Power vacuum		Weight		HYD	Side oil tank
Code	m3/h	l/min	cfm	rpm	rpm	rpm	%	Hg	%	Hg	bar	psi	kW	hp	kg	lbs	HYD	Side oil tank
23	156	2600	92	D1300	M540	-	90	27	60	18	1,5	21,8	3,3	4,5	53	117	•
33	216	3600	127	D1300	M540	-	90	27	60	18	1,5	21,8	4,5	6,1	63	139	•
40	240	4000	141	D1300	M540	-	90	27	60	18	1,5	21,8	5,5	7,4	71	156	•
45	318	5300	187	D1300	M540	M1000	92	27,5	60	18	1,5	21,8	5,8	7,8	90	198	•
58	390	6500	230	D1300	M540	M1000	92	27,5	60	18	1,5	21,8	6,6	8,9	102	225	•
84	540	9000	317	D1300	M540	M1000	92	27,5	60	18	1,5	21,8	11,2	15,2	115	254	•
106	660	11000	388	D1300	M540	M1000	92	27,5	60	18	1,5	21,8	13,6	18,4	143	315	•	•
130	774	12900	456	D1350	M540	M1000	94	28,1	60	18	2	29	19	25,5	165	364	•	•
140	830	13850	490	D1350	M540	M1000	92	27,5	60	18	2	29	19	25,5	173	381	•	•
155	910	15200	536	D1150	M540	M1000	93	28	60	18	2	29	19	25,5	194	428	•	•
